🕹️Recommended Hardware Configuration

A minimum 2% Deadzone in Collective and Pedal (In some cases up to 5% on old or inaccurate hardware) is required for AFCS to function correctly. Not enough deadzone will result in the input controllers and the system inputs conflicting with each other, leading to erratic or unexpected behavior. No deadzone is required on Cyclic, fully supporting unsprung cyclics.

Primary Flight Controls Configuration

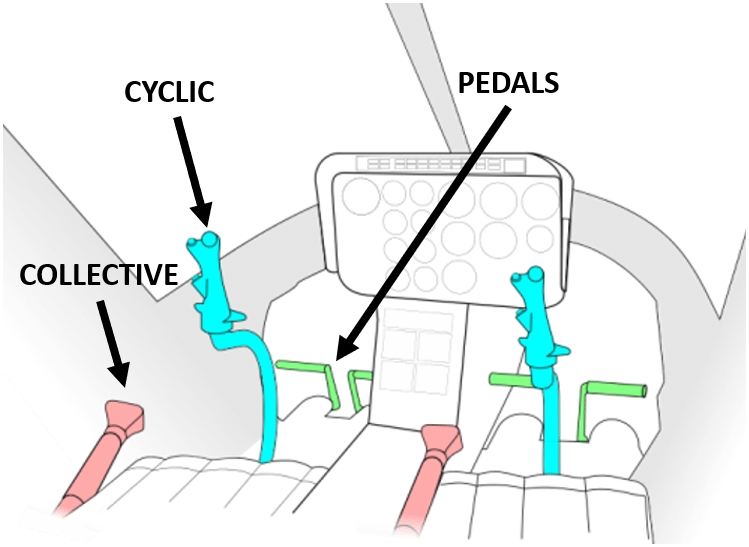

If you are not familiar with helicopters, this guide should help you understand the basic controls that make them fly, and help you configure the controls correctly.

• The Cyclic: This stick sits between your legs. Moving it forward or back controls the helicopter's pitch (nose up or down). Moving it side-to-side controls the helicopter's roll (leaning left or right).

  • Pitch Binding: ELEVATOR AXIS or CYCLIC LONGITUDINAL AXIS

  • Roll Binding: AILERONS AXIS or CYCLIC LATERAL AXIS

  • Both Pitch and Roll can be trimmed, making flight more comfortable for the user:

    • Cyclic Pitch Trim Binding: INCREASE ROTOR LONGITUDINAL TRIM and DECREASE ROTOR LONGITUDINAL TRIM

    • Cyclic Roll Trim Binding: INCREASE ROTOR LATERAL TRIM and DECREASE ROTOR LATERAL TRIM

• The Collective: This lever is on your left side. Raising the collective increases the pitch of all rotor blades at once, generating more lift and making the helicopter rise. Lowering it causes the helicopter to descend.

  • Collective Binding: THROTTLE AXIS or COLLECTIVE AXIS

  • Is there Throttle?: The MH60 does NOT have manual throttle control. Instead, the governor (device that automatically maintains a constant rotor speed (RPM) in a helicopter) will adjust the throttle as required. DO NOT USE HELICOPTER THROTTLE AXIS

• Directional Pedals: These are on the floor at your feet. Pushing the pedals lets you turn the helicopter nose left or right.

  • Directional Pedals Binding: RUDDER AXIS or TAIL ROTOR AXIS

Primary Helicopter Controls

• Rotor Brake: Hydraulic system used to stop or slow the main rotor blades after engine shutdown. Rotor brake Binding: ROTOR BRAKE

Control Sensitivity Configuration

The design of the MH60 makes it an inherently stable aircraft. No pedal input is required to keep the aircraft under control. For this reason, Control Sensibility is a personal preference of the user and we don't have any particular recommendations to make.

Xbox Controller users may benefit from dampened sensibility in the cyclic axis for more precise control in hover.

Keybinds, LVARs and HEvents

A growing number of functions will be supported for Keybinding and Hardware Interaction over the upcoming updates. The Keybind Guide is frequently updated, and available here: Keybinds Guide
