Loading Weapons

To load weapons, locate and open the tray table loadout configurator menu. Click on the upper left corner to change from Map view to Loadout view.

• Aircraft must be on the ground, stationary and with the parking brake on to load weapons.

• Armament Master Arm must be off to load weapons.

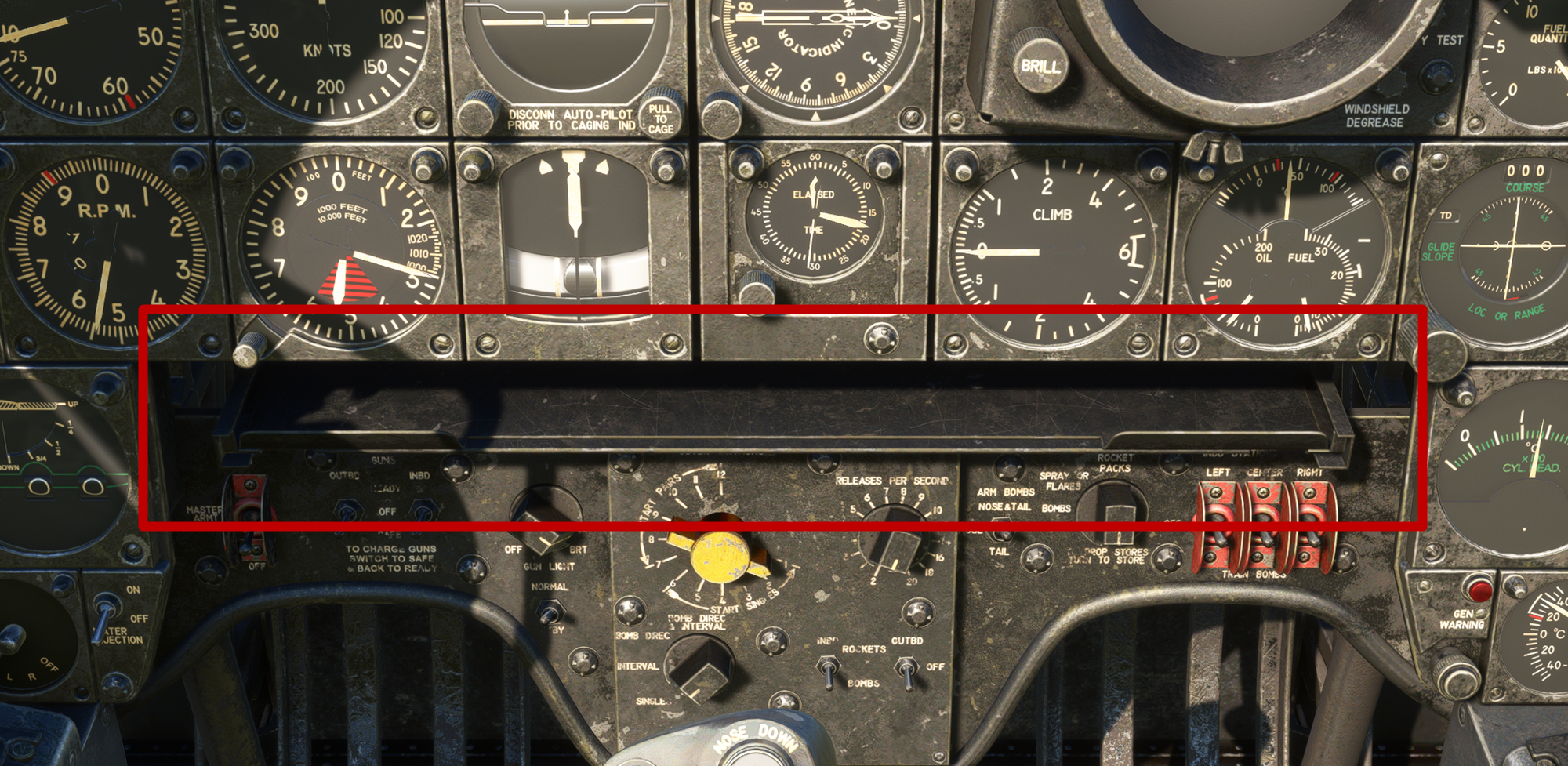

Location of Work Tray Table

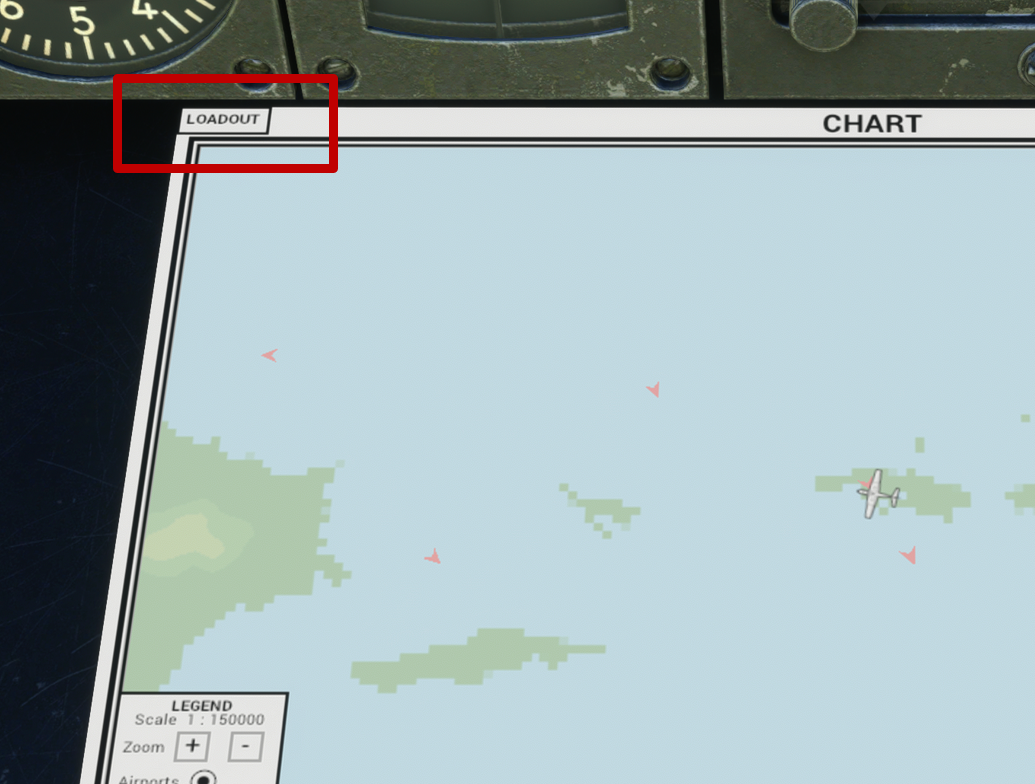

Change from Map Mode to Loadout

Loadout UI

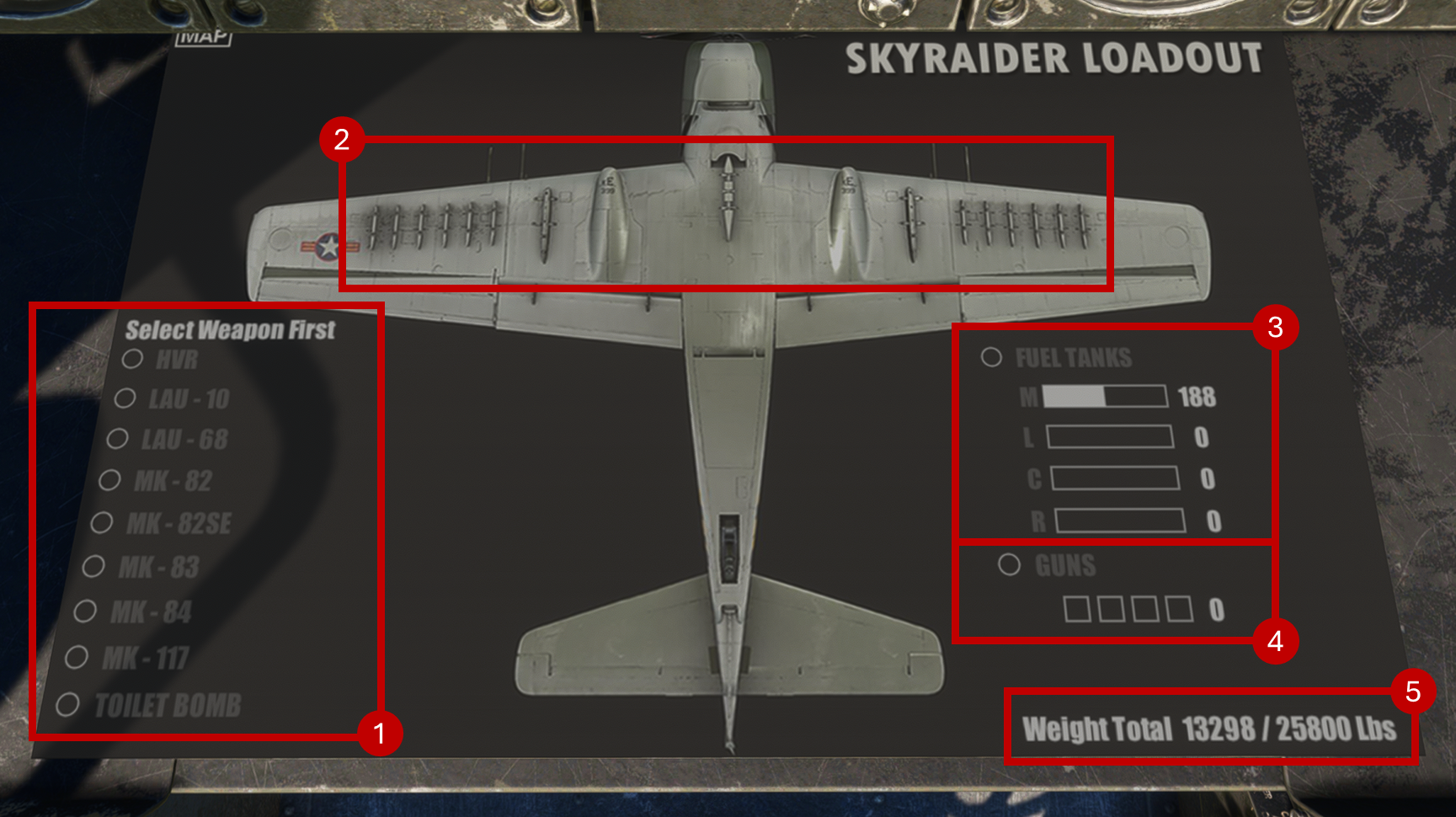

1. Weapon Selector Menu: Select weapon to load on the pylon.

   1. Hover on any option to display available pylons for such weapon type.

   2. Click on the circle to select weapon type for loading.

2. Pylon Selector: Configure weapons freely by adding any combination of weapons to each corresponding pylon.

   1. Select a weapon, then click a pylon to attach a weapon or fuel tank. Click a loaded pylon to remove it.

3. External Fuel Tank Selector: Configure external tanks and modify the fuel quantity on them.

   1. Click on the circle and load external tanks to their corresponding pylons.

   2. Hover on the fuel quantity selectors to modify the quantity of fuel on each corresponding tank.

4. Gun Selector: Select ammo quantity to load.

5. Weight Indicator: Displays the current aircraft weight alongside the maximum takeoff weight for reference.

Functional Demo

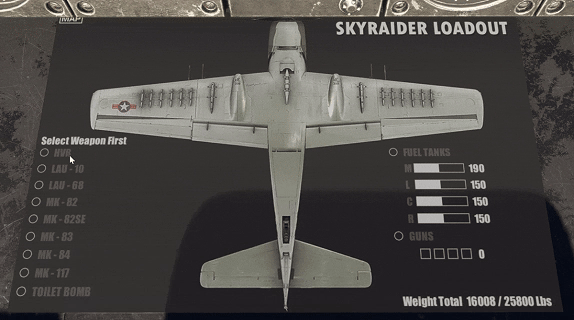

1. Load and Unload Weapons. Weapons are loaded and indexed by pylon. Hover over a weapon type to highlight compatible pylons. Select a weapon, then click a pylon to install it.

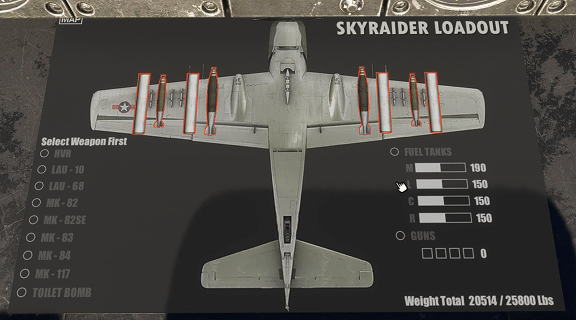

1. Load Fuel Tanks and Gun Ammo. Fuel Tanks are loaded similarly to weapons, by attaching to an available pylon. Hover over fuel selector to adjust fuel quantity. Load gun ammo by rounds of 200.
