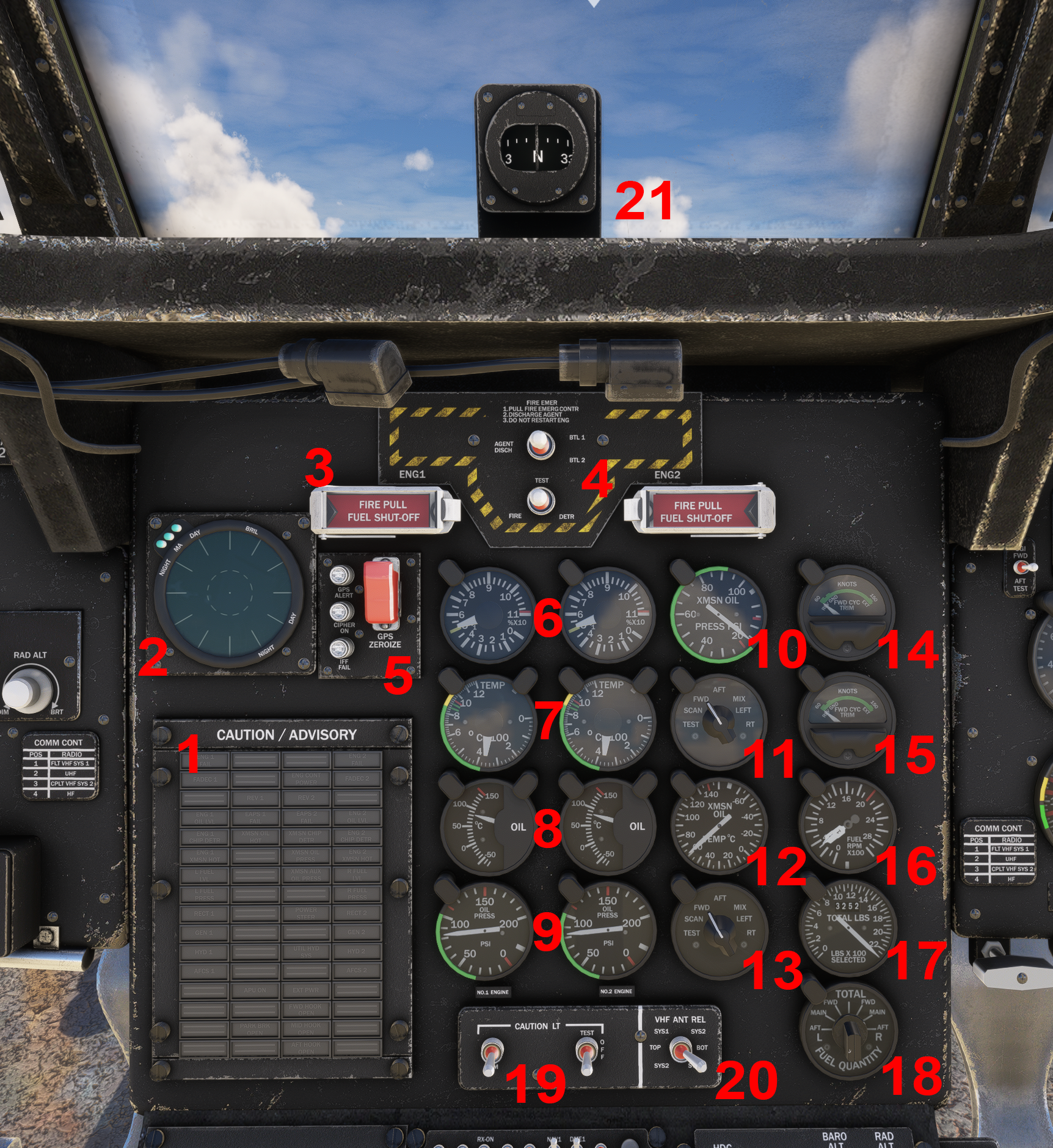

Center Instrument Panel

  1. Master Caution/Advisory Panel

  2. Missile Alert Display (INOP)

  3. FIRE PULL Handles (INOP)

  4. FIRE Test Switches (INOP)

  5. IFF/GPS Zeroize Switch (INOP)

  6. Engine 1/Engine 2 N1: Gas Producer Tachometer

  7. Power Turbine Inlet Temperature Indicator

  8. Engine Oil Temperature Indicator

  9. Engine Oil Pressure Indicator

  10. Transmission Oil Pressure Indicator

  11. Transmission Oil Pressure Selector: selects system to display on #10

  12. Transmission Oil Temperature Indicator

  13. Transmission Oil Temperature Indicator: selects system to display on #12

  14. FWD Longitudinal Cyclic Trim Indicator

  15. AFT Longitudinal Cyclic Trim Indicator

  16. Fuel Flow Indicator

  17. Fuel Quantity Indicator

  18. Fuel Quantity Selector: selects tank to display on #17

  19. Caution Light Test

  20. VHF Antenna Selector (INOP)

  21. Compass

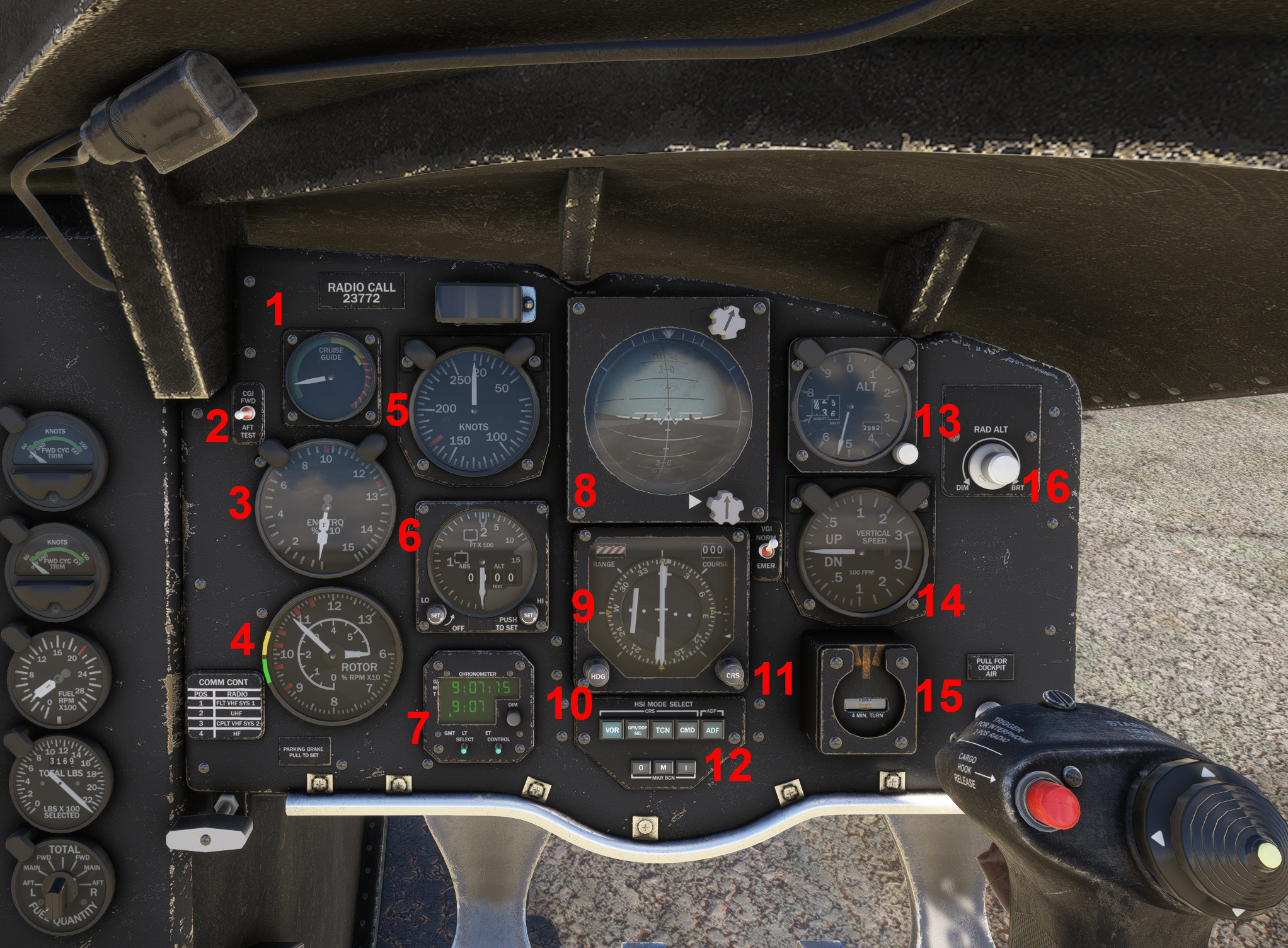

Pilot-Side Instrument Panel

  1. Cruise Guide Indicator (CGI): Gives the pilot a visual indication of the loads imposed on critical components. Needle should be kept in the green band, with only transient excursions into the yellow band.

  2. CGI Test: Up for FWD Rotor System, down for AFT Rotor System.

  3. Torquemeter

  4. Rotor Tachometer (RPM %). Small needle measures from 0-50%, large needle from 50-130%

  5. Airspeed Indicator (Knots)

  6. Radar Altimeter

  7. Chronometer

  8. Attitude Indicator

  9. Horizontal Situation Indicator (HSI)

  10. Heading Selector: Affects both the heading (HSI heading bug) and Autopilot Heading Select.

  11. Course Selector

  12. HSI Mode Select: Selects source for navigation data (VOR, TACAN, ADF)

  13. Barometric Altimeter

  14. Vertical Speed Indicator

  15. Turn and Slip Indicator

  16. Radar Altimeter Dimmer Knob

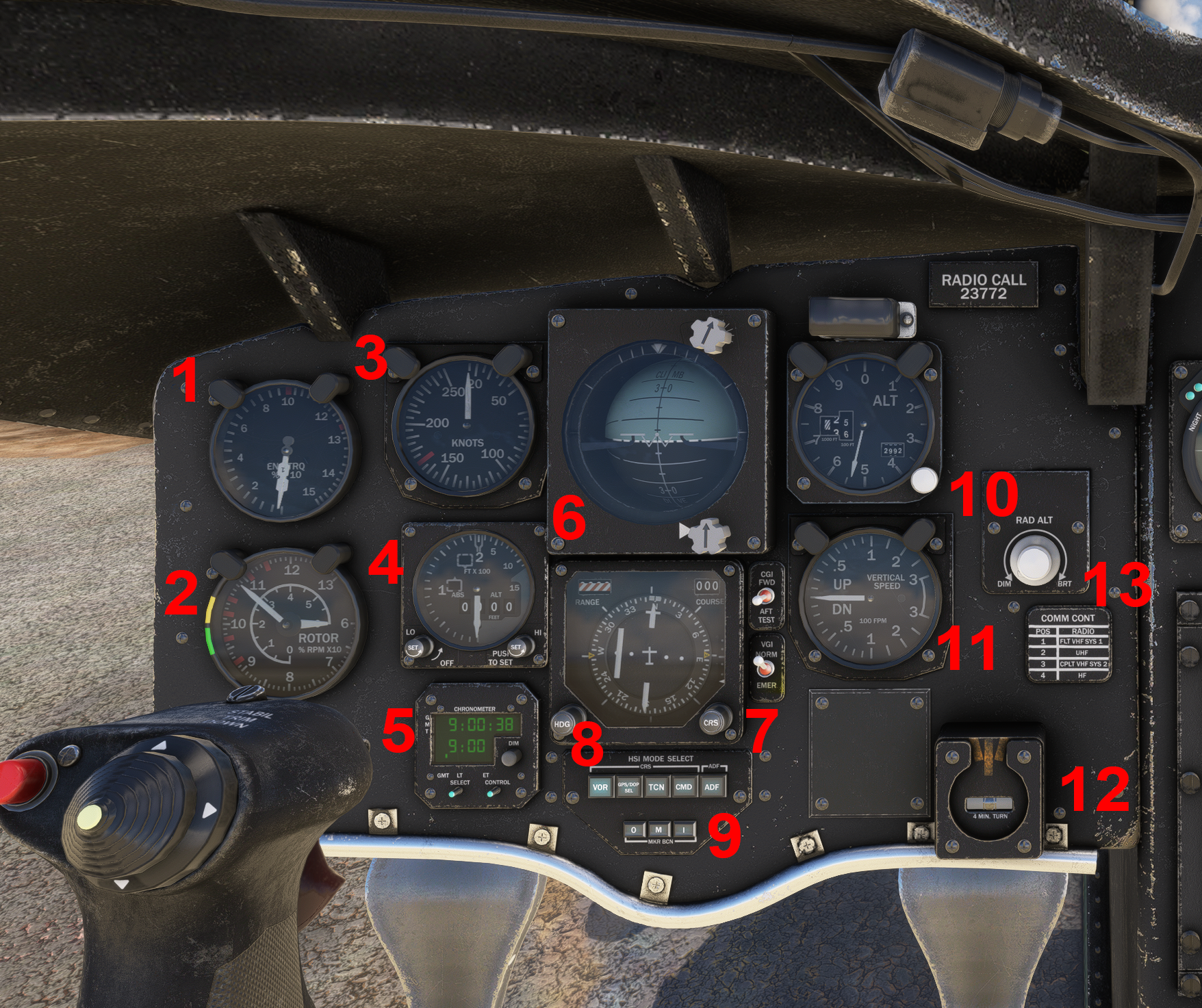

Copilot-Side Instrument Panel

  1. Torquemeter

  2. Rotor Tachometer (RPM %). Small needle measures from 0-50%, large needle from 50-130%

  3. Airspeed Indicator (Knots)

  4. Radar Altimeter

  5. Chronometer

  6. Attitude Indicator

  7. Course Selector

  8. Heading Selector: Affects only the HSI heading bug

  9. HSI Mode Select: Selects source for navigation data (VOR, TACAN, ADF)

  10. Barometric Altimeter

  11. Vertical Speed Indicator

  12. Turn and Slip Indicator

  13. Radar Altimeter Dimmer Knob

🚁
🎛ī¸

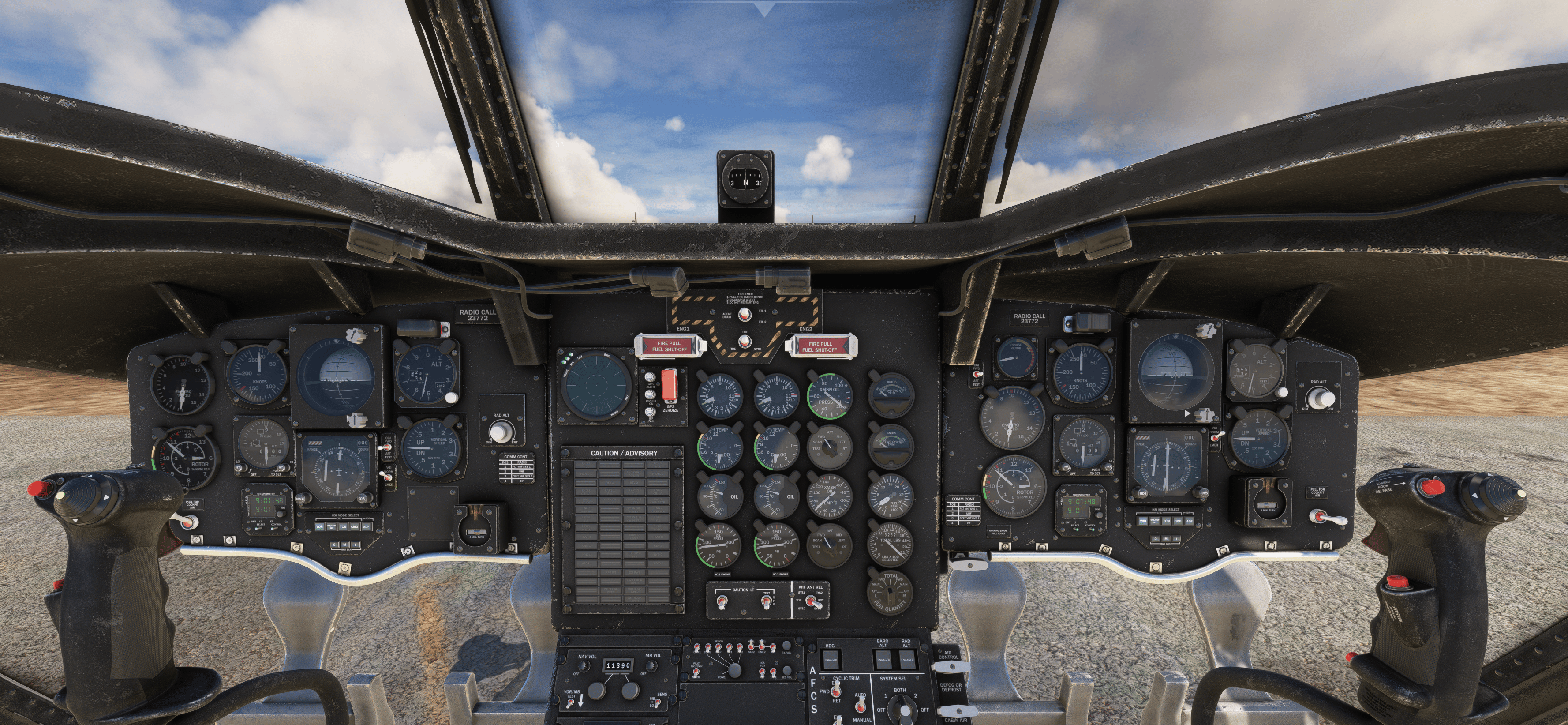

Main Instrument Panel Overview
